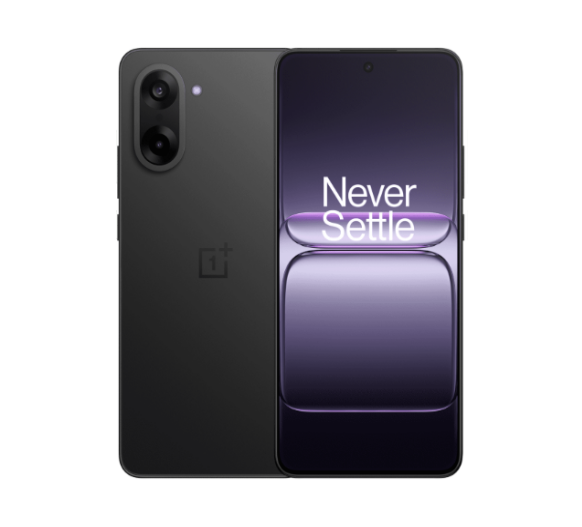

OnePlus Ace 5 Racing Edition

Description

Processing platform
CPU frequency
8 cores (4 super cores + 4 large cores)
Maximum frequency 3.4GHz
Processing platform
MediaTek Dimensity 9400e
CPU core number
8 cores
GPU
ARM Immortalis G720 MC12
Data function
WLAN function
Support Wi-Fi 7 (802.11be)
Support Wi-Fi 6 (802.11ax)
Support Wi-Fi 5 (802.11ac)
Support 802.11a/b/g/n
Support Wi-Fi Display
Support WLAN network sharing
Support network overlay: Wi-Fi 2.4GHz 2×2+Wi-Fi 5GHz 2×2 concurrently
Support Wi-Fi 5GHz 160MHz
Support 2×2 MIMO
Transmission protocol
USB 2.0
Bluetooth audio specifications
SBC, AAC, aptX, aptX HD, LDAC, LHDC 5.0
Data interface
USB Type-C
Headphone jack
Type-C interface headphones (support Type-C digital headphones & Type-C analog headphones)
NFC
Support reading and writing NFC cards (13.56MHz NFC cards)
Support NFC-SIM (only supports SIM1 card slot)
Support HCE payment
Support eSE (supports subway and bus rides in 300+ cities, supports OnePlus Pay, access cards, car keys and citizen network electronic identity (eID) and other functions. One touch for convenient passage and secure payment.)
Memory and capacity
RAM specifications
LPDDR5X
ROM specifications
UFS 4.0
Expansion card
Not supported
Camera
Rear camera
50 million pixel wide-angle camera: f/1.8, equivalent focal length 26 mm, 5P lens, support AF autofocus, support two-axis OIS anti-shake
2 million pixel portrait camera: f/2.4, equivalent focal length 22 mm, 3P lens
Photo shooting supports up to 20x digital zoom
Front camera
16-megapixel camera: f/2.4, equivalent focal length 23 mm, 4P lens
Rear shooting modes
Photo, video, portrait, night scene, panorama, multi-scene video, time-lapse photography, cute shot, AI ID photo, professional mode, slow motion, movie, high pixel, scan, shift
Front shooting modes
Photo, video, portrait, night scene, panorama, multi-scene video, time-lapse photography, cute shot, beauty selfie, screen fill light, AI ID photo
Video shooting
Rear video shooting
4K basic shooting: 60 fps, 30 fps
1080P basic shooting: 60 fps, 30 fps
720P basic shooting: 30 fps
4K video anti-shake shooting: 60 fps, 30 fps
1080P video anti-shake shooting: 60 fps, 30 fps
720P video stabilization shooting: 30 fps
1080P slow motion video shooting: 120 fps
720P slow motion video shooting: 240 fps, 120 fps
1080P time-lapse photography shooting: 30 fps
2384×1080 movie mode video shooting: 30 fps
Front-facing video shooting
1080P basic shooting: 60 fps, 30 fps (beauty is turned on by default)
720P basic shooting: 30fps
1080P video stabilization shooting: 60 fps, 30 fps (beauty is turned on by default)
720P video stabilization shooting: 30 fps
Battery and charging
Battery capacity
7100 mAh/27.84 Wh (typical value)
6930 mAh/27.17 Wh (rated value)
Fast charging
80 W Super Flash Charge, 30 W Flash Charge, 33 W PPS, 18 W PD, 18 W QC
Charging port
USB Type-C
Display
Screen type
Flat screen
Screen size
6.77 inches
Screen resolution
FHD 2392×1080 pixels
Screen ratio
94.1%
Brightness
Global default maximum brightness: 800 nits typical value
Global excitation maximum brightness: 1300 nits typical value
Panel material
AMOLED flexible screen
Touch sampling rate
Up to 300Hz (OTA support), default 120Hz
Color gamut
Vivid mode: 100% DCI-P3
Natural mode: 100% sRGB
Cinema mode: 100% DCI-P3
Violent mode: 100% DCI-P3
Color
1 billion colors (10-bit)
Screen refresh rate
60/90/120Hz smart switching, up to 120Hz support
Pixel density
387 PPI
Dimensions and weight
Height
163.58mm
Width
76.02mm
Thickness
8.17mm (Wild Green, Rock Black)
8.27mm (Wave White)
Weight
Approximately 200g
Cellular network
Dual SIM support
Yes
SIM card type
Nano-SIM card
Network frequency band
2G GSM: 850/900/1800MHz
3G WCDMA: Band 1/5/8
4G LTE FDD: Band 1/3/4/5/8/19/28A/66
4G LTE TDD: Band 34/38/39/40/41/42/48
5G NR: n1/n3/n5/n8/n28A/n38/n40/n41/n48/n66/n77/n78
Biometrics
Fingerprint unlocking method
Fingerprint category: under-screen fingerprint
Fingerprint principle: optical fingerprint
Fingerprint technology: short-focus fingerprint
Face recognition
Support
Sensor
Type
Proximity sensor, ambient light sensor, electronic compass, accelerometer, gyroscope, infrared remote control, under-screen optical fingerprint sensor
Positioning function
Satellite positioning
Single frequency support: Beidou, GPS, GLONASS, Galileo, QZSS
Others
Support wireless LAN positioning, support cellular network positioning, support A-GNSS assisted positioning
