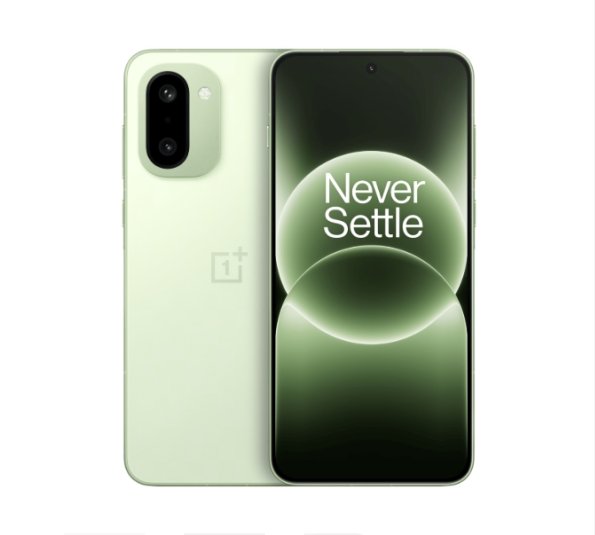

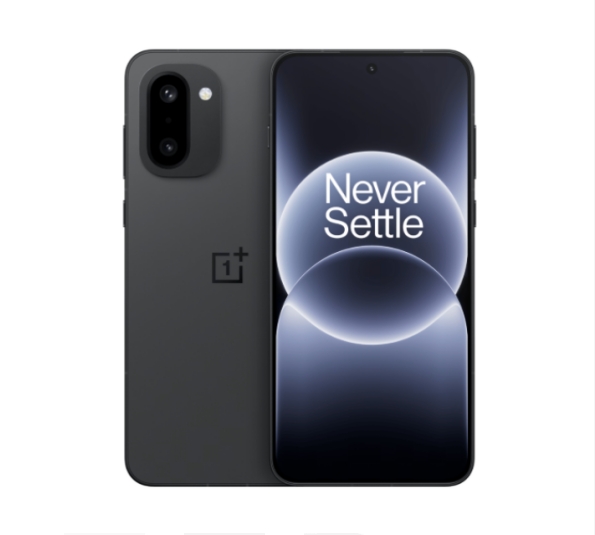

OnePlus Ace 6T

Description

Processing Platform

CPU Frequency
8 Cores (2 Super Cores + 6 Large Cores)
Maximum Clock Speed ​​3.8GHz
Processing Platform
5th Generation Snapdragon® 8 Mobile Platform

CPU Core Count
8 Cores

GPU
Latest Generation Adreno GPU
Data Functions

WLAN Functions
Supports Wi-Fi 7 (802.11be)
Supports Wi-Fi 6 (802.11ax)
Supports Wi-Fi 5 (802.11ac)
Supports 802.11a/b/g/n
Supports Wi-Fi Display
Supports WLAN Sharing
Supports Wi-Fi 5GHz 160MHz
Supports 2×2 MIMO
Transmission Protocols
USB 2.0
Bluetooth Audio Specifications
SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, LHDC 5.0
Data Interface
USB Type-C
Headphone Jack
Type-C Interface Headphones (Supports Type-C Digital Headphones & Type-C… (Analog Earphone)

NFC: Supports reading and writing NFC cards (13.56MHz NFC cards)

Supports NFC-SIM (SIM1 card slot only)

Supports HCE payment

Supports eSE (Supports subway and bus rides in 300+ cities, supports OnePlus Pay, access cards, car keys, and citizen electronic identity (eID) and other functions. Convenient access and secure payment with a simple touch.)

Memory and Capacity:

RAM Specification: LPDDR5X

ROM Specification: UFS 4.1

Expandable Card: Not Supported

Camera:

Rear Camera:

50MP Wide-Angle Camera: f/1.8, 24mm equivalent focal length, 6P lens, supports AF autofocus, supports two-axis OIS image stabilization

8MP Ultra-Wide-Angle Camera: f/2.2, 16mm equivalent focal length, 5P lens, 112° wide angle of view

Photo shooting supports up to 1x optical zoom, up to 20… 1x Digital Zoom
Front Camera
16MP Camera: f/2.4, 23mm equivalent focal length, 4P lens
Rear Camera Shooting Modes
Photo, Video, Portrait, Night Scene, Panorama, Movie, Slow Motion, Long Exposure, Multi-View Recording, Time-Lapse Photography, Cute Shot, High Pixel, AI ID Photo, Professional Mode, Super Text, Scan, Tilt-Shift
Front Camera Shooting Modes
Photo, Video, Portrait, Night Scene, Panorama, Multi-View Recording, Time-Lapse Photography, Cute Shot, AI ID Photo
Video Shooting
Rear Camera Video Shooting
4K Basic Shooting: 120 fps, 60 fps, 30 fps
1080P Basic Shooting: 120 fps, 60 fps, 30 fps
720P Basic Shooting: 30 fps
4K Video Stabilized Shooting: 120 fps, 60 fps, 30 fps
1080P Video Stabilized Shooting: 120 fps, 60 fps, 30 fps fps, 30 fps

720P video stabilization shooting: 30 fps

4K slow motion video shooting: 120 fps

1080P slow motion video shooting: 240 fps, 120 fps

720P slow motion video shooting: 480 fps, 240 fps

4K time-lapse photography shooting: 30 fps

1080P time-lapse photography shooting: 30 fps

Supports movie mode video shooting

Supports multi-scene video recording

Supports video zoom shooting: up to 1x optical zoom, up to 10x digital zoom

Front-facing video shooting

1080P basic shooting: 30 fps

720P basic shooting: 30 fps

1080P video stabilization shooting: 30 fps

720P video stabilization shooting: 30 fps

1080P time-lapse photography shooting: 30 fps FPS
Supports multi-scene video recording
Battery and Charging
Battery Capacity
8300 mAh/30.88 Wh (typical)
8070 mAh/30.03 Wh (rated)
Fast Charging
Maximum Support: 100W SuperVOOC Flash Charge, 100W UFCS Fast Charging
Compatible with: 80W and below SuperVOOC Flash Charge, 44W third-party UFCS Fast Charging, 55W PPS, 18W PD, 18W QC
Charging Port
USB Type-C
Display
Screen Type
Flat Screen
Screen Size
6.83 inches
Screen Resolution
FHD+ 2800×1272 pixels
Screen-to-Body Ratio
93.6%
Screen Brightness
Global Default Maximum Brightness: 800 nits (typical)
Global Activated Maximum Brightness: 1800 nits (typical)
Panel Material
AMOLED Flexible Screen
Touch Sampling Rate
Maximum 330Hz, Default 120Hz
Color Gamut
Natural Mode: 100% DCI-P3
Pro Mode: 100% DCI-P3
Vivid Mode: 100% DCI-P3
Screen Colors
1.07 billion colors (10-bit)
Screen Refresh Rate
60/90/120/144/165Hz intelligent switching, supporting up to 165Hz (144/165Hz only works in some scenarios)
Screen Pixel Density
450 PPI
Size and Weight
Height
163.41mm
Width
77.04mm
Thickness
8.30mm (Phantom Green, Flash Black, Snow Blue)
8.10mm (Electric Purple)
Weight
Approx. 217g (Phantom Green)
Approx. 211g (Electric Purple)
Approx. 216g (Flash Black, Snow Blue)
Cellular Network
Dual SIM Support
Supported
SIM Card Type
Nano-SIM SIM Card
Network Frequency Bands
2G GSM: 850/900/1800MHz
3G WCDMA: Frequency Bands 1/4/5/6/8/19
4G LTE FDD: Frequency Bands 1/3/4/5/8/18/19/26/28A/66
4G LTE TDD: Frequency Bands 34/38/39/40/41/42/43/48
5G NR: n1/n3/n5/n8/n18/n26/n28A/n38/n40/n41/n48/n66/n77/n78
Communication Chips
AI Communication Chip R100
Carrier Networks
China Mobile, China Unicom, China Telecom, China Broadcasting Network VoLTE Biometrics Fingerprint Unlock Method Fingerprint Type: In-display Fingerprint Fingerprint Principle: Ultrasonic Fingerprint Fingerprint Technology: Ultrasonic Fingerprint Facial Recognition Supported Sensors Sensor Types Proximity sensor, ambient light sensor, color temperature sensor, electronic compass, accelerometer, gyroscope, infrared remote control Positioning Function Satellite Positioning BeiDou (B1I+B1C+B2a), GPS (L1+L5), GLONASS (G1), Galileo (E1+E5a), QZSS (L1+L5) Other Supports A-GNSS assisted positioning, supports Wi-Fi positioning, supports cellular network positioning
