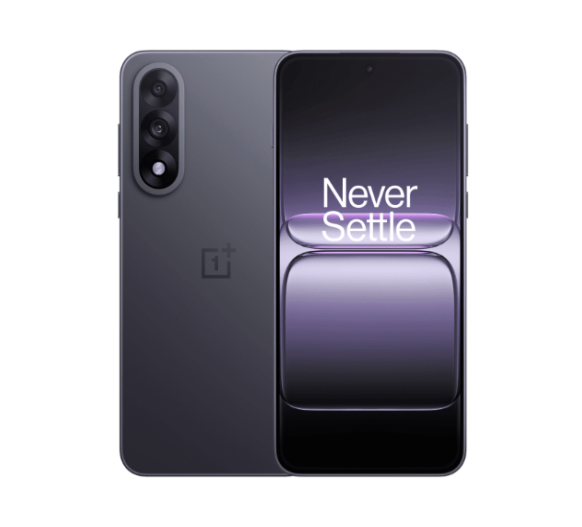

OnePlus Ace 5 Extreme Edition

Description

Processing platform
CPU frequency
8 cores (4 super cores + 4 large cores)
Maximum frequency 3.73GHz
Processing platform
MediaTek Dimensity 9400+
CPU core number
8 cores
GPU
Immortalis G925 MC12
Data function
WLAN function
Support Wi-Fi 7 (802.11be)
Support Wi-Fi 6 (802.11ax)
Support Wi-Fi 5 (802.11ac)
Support 802.11a/b/g/n
Support Wi-Fi Display
Support WLAN network sharing
Support network overlay Wi-Fi 2.4GHz 2×2+Wi-Fi 5GHz 2×2 concurrently
Support Wi-Fi 5GHz 160MHz
Support 2×2 MIMO
Transmission protocol
USB 2.0
Bluetooth audio specifications
SBC, AAC, LDAC, aptX, aptX HD, LHDC 5.0
Data interface
USB Type-C
Headphone jack
Type-C interface headphones (support Type-C digital headphones & Type-C analog headphones)
NFC
Support reading and writing NFC cards (13.56MHz NFC cards)
Support NFC-SIM (only supports SIM1 card slot)
Support HCE payment
Support eSE (supports subway and bus rides in 300+ cities, supports OnePlus Pay, access cards, car keys and citizen network electronic identity (eID) and other functions. One touch for convenient passage and secure payment.)
Memory and capacity
RAM specifications
LPDDR5X
ROM specifications
UFS 4.0
Expansion card
Not supported
Camera
Rear camera
50 million pixel wide-angle camera: f/1.8, equivalent focal length 24 mm, 6P lens, support AF autofocus, support two-axis OIS anti-shake
8 million pixel ultra-wide-angle camera: f/2.2, equivalent focal length 16 mm, 5P lens, 112° wide viewing angle
Photo shooting supports up to 20x digital zoom
Front camera
16-megapixel camera: f/2.4, equivalent focal length 23 mm, 4P lens
Rear shooting modes
Photo, video, portrait, night scene, panorama, movie, slow motion, long exposure, multi-scene recording, time-lapse photography, cute shot, super text, high pixel, AI ID photo, professional mode, scan, shift
Front shooting modes
Photo, video, portrait, night scene, panorama, multi-scene recording, time-lapse photography, cute shot, beauty selfie, screen fill light, AI ID photo
Video shooting
Rear video shooting
4K basic shooting: 60 fps, 30 fps
1080P basic shooting: 60 fps, 30 fps
720P basic shooting: 30 fps
4K video anti-shake shooting: 60 fps, 30 fps
1080P Video stabilization shooting: 60 fps, 30 fps
1080P slow motion video shooting: 240 fps
720P slow motion video shooting: 480 fps, 240 fps
4K time-lapse photography shooting: 30 fps
1080P time-lapse photography shooting: 30 fps
Support movie mode video shooting
Support multi-scene video shooting
Support video zoom shooting: up to 10x digital zoom
Front-facing video shooting
1080P basic shooting: 30 fps
720P basic shooting: 30 fps
1080P video stabilization shooting: 30 fps
720P video stabilization shooting: 30 fps
1080P time-lapse photography shooting: 30 fps
Support multi-scene video shooting
Battery and charging
Battery capacity
2×3350 mAh/25.67 Wh (typical value), equivalent to 6700 mAh battery energy
2×3300 mAh/25.28 Wh (rated value), equivalent to 6600 mAh battery energy
Fast charging
100 W Fusion Fast Charge, 100 W Super Flash Charge. Compatible with 80W Super Flash Charge, 67W Super Flash Charge, 45W Super Flash Charge, 33W Super Flash Charge, 13.5W PD
Charging port
USB Type-C
Display
Screen type
Flat screen
Screen size
6.83 inches
Screen resolution
FHD+ 2800×1272 pixels
Screen ratio
93.6%
Brightness
Global default maximum brightness: 800 nits typical value
Global excitation maximum brightness: 1400 nits typical value
Panel material
AMOLED flexible screen
Touch sampling rate
Up to 300Hz, default 120Hz
Color gamut
Vivid mode: 100% DCI-P3
Natural mode: 100% DCI-P3
Cinema mode: 100% DCI-P3
Vivid mode: 100% DCI-P3
Color
1.07 billion colors (10-bit)
Screen refresh rate
60/90/120Hz Smart switching, supports up to 144Hz
Pixel density
450 PPI
Dimensions and weight
Height
163.41mm
Width
77.04mm
Thickness
8.10mm
Weight
About 206g
Cellular network
Dual SIM support
Supported
SIM card type
Nano-SIM card, Nano-USIM card
Network band
2G GSM: 850/900/1800
2G CDMA: Not supported
3G WCDMA: Band 1/4/5/8
4G LTE FDD: Band 1/3/4/5/8/18/19/26/28A/66
4G LTE TDD: Band 34/38/39/40/41/42/48
5G NR: 1/3/5/8/26/28A/38/40/41/48/66/77/78
Biometrics
Fingerprint unlocking method
Fingerprint category: under-screen fingerprint
Fingerprint principle: optical fingerprint
Fingerprint technology: short-focus fingerprint
Face recognition
Support
Sensor
Type
Proximity sensor, ambient light sensor, electronic compass, accelerometer, gyroscope, infrared remote control
Positioning function
Satellite positioning
Dual-frequency support: Beidou (B1i+B1c+B2a+B2b), GPS (L1+L5), GLONASS (G1), Galileo (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5)
Others
Support wireless LAN positioning, support cellular network positioning, support A-GNSS assisted positioning
